Sample Free 2.0 W/M.K Thermally Conductive Pad For LED/TV Heat Dissipation

Name: Sample Free 20 WMK Thermally Conductive Pad For LEDTV Heat Dissipation
Brand: ZIITEK
Price: 1 USD

Wholesale Sample Free 2.0 W/M.K Thermally Conductive Pad For LED/TV Heat Dissipation from china suppliers

Brand Name : ZIITEK

Model Number : TIF180-20-50E

Certification : UL and RoHs

Place of Origin : China

MOQ : 1000pcs

Price : negotiation

Supply Ability : 100000pcs/day

Delivery Time : 3-5 days

Packaging Details : 1000pcs/bag

Products name : Sample Free 2.0 W/M.K Thermally Conductive Pad For LED/TV Heat Dissipation

Thickness : 2mmT

Thermal conductivity : 2W/m-K

Application : Heating pipe thermal solutions

Specific gravity : 2.7g/cc

Dielectric Constant : 5.0 MHz

Fire rating : 94-V0

Keywords : Thermally Conductive Pad

Color : Pink

Contact Now

Sample Free 2.0 W/M.K Thermally Conductive Pad For LED/TV Heat Dissipation

Product introduction

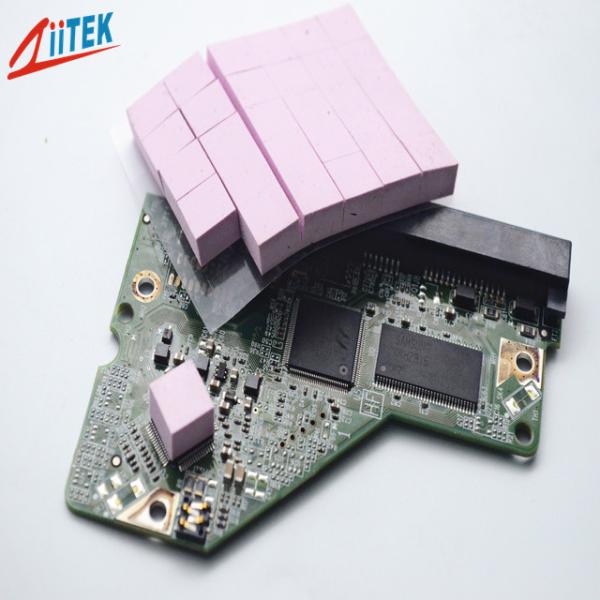

The TIF180-20-50E Series thermally conductive interface materials are applied to fill the air gaps between the heating elements and the heat dissipation fins or the metal base. Their flexibility and elasticity make them suited to the coating of the very uneven surfaces. Heat can transmit to the metal housing or dissipation plate from the separate elements or even the entire PCB, which in effect enhances the efficiency and life-time of the heat-generating electronic components.

Sample Free 2.0 W/M.K Thermally Conductive Pad For LED/TV Heat Dissipation
Features:

> Good thermal conductive: 2.0W/mK
> Moldability for complex parts
> Soft and compressible for low stress applications
> Naturally tacky needing no further adhesive coating

> High tack surface reduces contact resistance
> RoHS compliant
> UL recognized

Applications

> Mainboard/mother board
> Notebook
> Power supply
> Heat pipe thermal solutions
> Memory Modules
> Mass storage devices
> Automotive electronics
> Set top boxes
> Audio and video components

Typical Properties of TIF180-20-50E Series
Color	Pink	Visual
Construction &Compostion	Ceramic filled silicone elastomer	***
Thickness	0.020"(0.5mm)~0.200"(5.0MM)	ASTM D374
Specific Gravity	2.7g/cc	ASTM D792
Hardness	35 Shore 00	ASTM 2240
Continuos Use Temp	-40 to 200℃	***
Dielectric Breakdown Voltage	>5500 VAC	ASTM D149
Dielectric Constant	5.0 MHz	ASTM D150
Volume Resistivity	1.0X10¹² Ohm-meter	ASTM D257
Fire rating	94 V0	UL E331100
Outgassing(TML)	0.40%
Thermal conductivity	2.0W/m-K	ASTM D5470

Standard Thicknesses:

0.020" (0.51mm) 0.030" (0.76mm)

0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm)

0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm)

0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm)

0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm)

0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm)

0.190" (4.83mm) 0.200" (5.08mm)

Consult the factory to alternate thickness.

Standard Sheets Sizes:
8" x 16"(203mm x 406mm)

Individual die cut shapesand and custom thickness can be supplied.Please contact us for confirming

Peressure Sensitive Adhesive:
Request adhesive on one side with "A1" suffix.
Request adhesive on double side with "A2" suffix.

Reinforcement:
TIF™ series sheets type can add with fiberglass reinforced.

Sample Free 2.0 W/M.K Thermally Conductive Pad For LED/TV Heat Dissipation

Company Profile

Ziitek company is a manufacturer of thermal conductive gap fillers, low melting point thermal interface materials, thermal conductive insulators, thermally conductive tapes, electrically & thermally conductive Interface pads and thermal grease,Thermal Conductive plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials products, with well-equipped testing equipment and strong technical force.

Certifications:

ISO9001:2015

ISO14001: 2004 IATF16949:2016

IECQ QC 080000:2017

Why Choose us ?

1.Our value message is'' Do it right the First time, total quality control''.

2.Our core competencies is thermal conductive interface materials

3.Competitive advantage products.

4.Condidentiality agreement Bussiness Secrect Contract

5.Free sample offer

6.Quality assurance contract
